Data Format

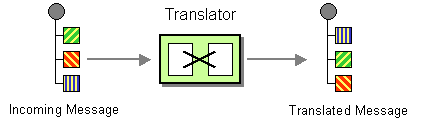

Camel supports a pluggable DataFormat to allow messages to be marshalled to and from binary or text formats to support a kind of Message Translator.


Camel has support for message transformation using several techniques. One such technique is data formats, where marshal and unmarshal comes from.

So in other words, the Marshal and Unmarshal EIPs are used data formats.

  • Marshal - Transforms the message body (such as Java object) into a binary or textual format, ready to be wired over the network.

  • Unmarshal - Transforms data in some binary or textual format (such as received over the network) into a Java object; or some other representation according to the data format being used.

Supported data formats

There are more than 40 different data formats that support formats such as XML, CSV, JSON, YAML, Avro, Protobuf, and many more.

Example

See Marshal for more information and examples.

Defining a data format once

A data format with options is often used in more than one place, for example to unmarshal a message and later marshal it again. Define it once, with an id, in a top-level dataFormats entry, and refer to it by that id with custom:

- dataFormats:
    - json:
        id: orderJson
        library: Jackson
        prettyPrint: true
- route:
    from:
      uri: timer:tick
      parameters:
        repeatCount: 1
      steps:
        - setBody:
            expression:
              constant:
                expression: '{"orderId": "ORD-1001", "qty": 2}'
        - unmarshal:
            custom:
              ref: orderJson
        - marshal:
            custom:
              ref: orderJson
        - log:
            message: "${body}"

Both unmarshal and marshal use the same JSON data format, so the log shows the order pretty printed.
