Message History

Camel supports the Message History from the EIP patterns book.

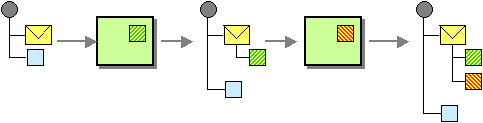

The Message History from the EIP patterns allows for analyzing and debugging the flow of messages in a loosely coupled system.


Attaching a Message History to the message will provide a list of all applications that the message has passed through since its origination.

Enabling Message History

The message history is disabled by default (to optimize for lower footprint out of the box). You should only enable message history if needed, such as during development, where Camel can report route stack-traces when a message failed with an exception. But for production usage, then message history should only be enabled if you have monitoring systems that rely on gathering these fine-grained details. When message history is enabled then there is a slight performance overhead as the history data is stored in a java.util.concurrent.CopyOnWriteArrayList due to the need of being thread safe.

The Message History can be enabled or disabled per CamelContext or per route (disabled by default). For example, you can turn it on with:

  • Java

  • Spring XML

  • Application Properties

camelContext.setMessageHistory(true);
<camelContext messageHistory="true">

</camelContext>

It is often easier to configure this in the application.properties file:

camel.main.messageHistory = true

Or when using Spring Boot or Quarkus, you can enable this in the configuration file:

  • Quarkus

  • Spring Boot

camel.quarkus.message-history = true
camel.main.message-history = true

Route level Message History

You can also enable or disable message history per route. When doing this, then Camel can only gather message history in the routes where this is enabled, which means you may not have full coverage. You may still want to do this, for example, to capture the history in a critical route to help pinpoint where the route is slow.

A route level configuration overrides the global configuration.

To enable per route:

  • Java

  • XML

  • YAML

from("jms:cheese")
  .messageHistory()
  .to("bean:validate")
  .to("bean:transform")
  .to("jms:wine");
<route messageHistory="true">
  <from uri="jms:cheese"/>
  <to uri="bean:validate"/>
  <to uri="bean:transform"/>
  <to uri="jms:wine"/>
</route>
- route:
    messageHistory: "true"
    from:
      uri: jms:cheese
      steps:
        - to:
            uri: bean:validate
        - to:
            uri: bean:transform
        - to:
            uri: jms:wine

You can also turn off message history per route:

  • Java

  • XML

  • YAML

from("jms:cheese")
  .messageHistory(false)
  .to("bean:validate")
  .to("bean:transform")
  .to("jms:wine");
<route messageHistory="true">
  <from uri="jms:cheese"/>
  <to uri="bean:validate"/>
  <to uri="bean:transform"/>
  <to uri="jms:wine"/>
</route>
- route:
    messageHistory: "true"
    from:
      uri: jms:cheese
      steps:
        - to:
            uri: bean:validate
        - to:
            uri: bean:transform
        - to:
            uri: jms:wine

Enabling source location information

Camel is capable of gathering precise source file:line-number for each EIPs in the routes. When enabled, then the message history will output this information in the route stack-trace.

To enable source location:

Java
camelContext.setSourceLocationEnabled(true);
Spring XML
<camelContext sourceLocationEnabled="true">

</camelContext>

Application Properties

+ It is often easier to configure this in the application.properties file:

+

camel.main.source-location-enabled = true

Or when using Spring Boot or Quarkus, you can enable this in the configuration file:

  • Quarkus

  • Spring Boot

camel.quarkus.source-location-enabled = true
camel.main.source-location-enabled = true

Route stack-trace in exceptions logged by error handler

If Message History is enabled, then Camel will include this information, when the Error Handler logs exhausted exceptions, where you can see the message history; you may think this as a "route stacktrace".

And example is provided below:

2022-01-06 12:13:06.721 ERROR 67729 --- [ - timer://java] o.a.c.p.e.DefaultErrorHandler            : Failed delivery for (MessageId: B4365D4CED3E5E1-0000000000000004 on ExchangeId: B4365D4CED3E5E1-0000000000000004). Exhausted after delivery attempt: 1 caught: java.lang.IllegalArgumentException: The number is too low

Message History (source location is disabled)
---------------------------------------------------------------------------------------------------------------------------------------
Source                                   ID                             Processor                                          Elapsed (ms)
                                         route1/route1                  from[timer://java?period=2s]                                  2
                                         route1/setBody1                setBody[bean[MyJavaRouteBuilder method:randomNumbe            0
                                         route1/log1                    log                                                           1
                                         route1/filter1                 filter[simple{${body} < 30}]                                  0
                                         route1/throwException1         throwException[java.lang.IllegalArgumentException]            0

Stacktrace
---------------------------------------------------------------------------------------------------------------------------------------

java.lang.IllegalArgumentException: The number is too low
	at sample.camel.MyJavaRouteBuilder.configure(MyJavaRouteBuilder.java:34) ~[classes/:na]
	at org.apache.camel.builder.RouteBuilder.checkInitialized(RouteBuilder.java:607) ~[camel-core-model-3.20.0.jar:3.20.0]
	at org.apache.camel.builder.RouteBuilder.configureRoutes(RouteBuilder.java:553) ~[camel-core-model-3.20.0.jar:3.20.0]

When Message History is enabled, then the full history is logged as shown above. Here we can see the full path the message has been routed.

When Message History is disabled, as it is by default, then the error handler logs a brief history with the last node where the exception occurred as shown below:

2022-01-06 12:12:32.072 ERROR 67704 --- [ - timer://java] o.a.c.p.e.DefaultErrorHandler            : Failed delivery for (MessageId: CD6D1B185A3706F-0000000000000004 on ExchangeId: CD6D1B185A3706F-0000000000000004). Exhausted after delivery attempt: 1 caught: java.lang.IllegalArgumentException: The number is too low

Message History (source location and message history is disabled)
---------------------------------------------------------------------------------------------------------------------------------------
Source                                   ID                             Processor                                          Elapsed (ms)
                                         route1/route1                  from[timer://java?period=2s]                                  2
	...
                                         route1/throwException1         throwException[java.lang.IllegalArgumentException]            0

Stacktrace
---------------------------------------------------------------------------------------------------------------------------------------

java.lang.IllegalArgumentException: The number is too low
	at sample.camel.MyJavaRouteBuilder.configure(MyJavaRouteBuilder.java:34) ~[classes/:na]
	at org.apache.camel.builder.RouteBuilder.checkInitialized(RouteBuilder.java:607) ~[camel-core-model-3.20.0.jar:3.20.0]
	at org.apache.camel.builder.RouteBuilder.configureRoutes(RouteBuilder.java:553) ~[camel-core-model-3.20.0.jar:3.20.0]

Here you can see the Message History only outputs the input (route1) and the last step where the exception occurred (throwException1).

Notice that the source column is empty because the source location is not enabled. When enabled then, you can see exactly which source file and line number the message routed:

2022-01-06 12:19:01.277 ERROR 67870 --- [ - timer://java] o.a.c.p.e.DefaultErrorHandler            : Failed delivery for (MessageId: 37412D6F722F679-0000000000000003 on ExchangeId: 37412D6F722F679-0000000000000003). Exhausted after delivery attempt: 1 caught: java.lang.IllegalArgumentException: The number is too low

Message History
---------------------------------------------------------------------------------------------------------------------------------------
Source                                   ID                             Processor                                          Elapsed (ms)
MyJavaRouteBuilder:29                    route1/route1                  from[timer://java?period=2s]                                 10
MyJavaRouteBuilder:32                    route1/setBody1                setBody[bean[MyJavaRouteBuilder method:randomNumber           1
MyJavaRouteBuilder:33                    route1/log1                    log                                                           1
MyJavaRouteBuilder:34                    route1/filter1                 filter[simple{${body} < 30}]                                  0
MyJavaRouteBuilder:35                    route1/throwException1         throwException[java.lang.IllegalArgumentException]            0

Stacktrace
---------------------------------------------------------------------------------------------------------------------------------------

java.lang.IllegalArgumentException: The number is too low
	at sample.camel.MyJavaRouteBuilder.configure(MyJavaRouteBuilder.java:34) ~[classes/:na]
	at org.apache.camel.builder.RouteBuilder.checkInitialized(RouteBuilder.java:607) ~[camel-core-model-3.20.0.jar:3.20.0]
	at org.apache.camel.builder.RouteBuilder.configureRoutes(RouteBuilder.java:553) ~[camel-core-model-3.20.0.jar:3.20.0]

In this case we can see its the MyJavaRouteBuilder class on line 35 that is the problem.

Configuring route stack-trace from error handler

You can turn off logging Message History with logExhaustedMessageHistory from the Error Handler using:

Java-only: disabling message history logging on the error handler
errorHandler(defaultErrorHandler().logExhaustedMessageHistory(false));

The Error Handler does not log the message body/header details (to avoid logging sensitive message body details). You can enable this with logExhaustedMessageBody on the error handler as shown:

  • Java

  • Spring XML

  • YAML

errorHandler(defaultErrorHandler().logExhaustedMessageBody(true));

In XML configuring this is a bit different, as you configure this in the redeliveryPolicy of the <errorHandler> as shown:

<camelContext messageHistory="true" errorHandlerRef="myErrorHandler" xmlns="http://camel.apache.org/schema/spring">

    <errorHandler id="myErrorHandler">
      <redeliveryPolicy logExhaustedMessageHistory="false" logExhaustedMessageBody="true"/>
    </errorHandler>

    <route>
      <from uri="jms:cheese"/>
      <to uri="bean:validate"/>
      <to uri="bean:transform"/>
      <to uri="jms:wine"/>
    </route>
</camelContext>
- errorHandler:
    defaultErrorHandler:
      redeliveryPolicy:
        logExhaustedMessageHistory: false
        logExhaustedMessageBody: true
- route:
    from:
      uri: jms:cheese
      steps:
        - to:
            uri: bean:validate
        - to:
            uri: bean:transform
        - to:
            uri: jms:wine

MessageHistory API

When message history is enabled during routing Camel captures how the Exchange is routed, as an org.apache.camel.MessageHistory entity that is stored on the Exchange.

On the org.apache.camel.MessageHistory there is information about the route id, processor id, timestamp, and elapsed time it took to process the Exchange by the processor.

You can access the message history from Java code:

Java-only: accessing the message history from the Exchange
List<MessageHistory> list = exchange.getProperty(Exchange.MESSAGE_HISTORY, List.class);
for (MessageHistory history : list) {
    System.out.println("Routed at id: " + history.getNode().getId());
}

Body types across messages

Each MessageHistory entry has the type of the message body as the node was reached (getBodyType()), for that one exchange. While message history is enabled (as the dev profile does, such as with camel run --dev), Camel also keeps these types per node, across all the messages, in the BodyTypeRegistry. So you can see what the body was at each step of a route: also in a branch the last message did not take, and with every type when it varied.

Each type has a kind, for what the steps can do with it:

Kind The body is

null

No body.

payload

The payload as it is: text, bytes, a stream or a file, or a single value such as a number. What a step that writes or sends needs.

data

A Java object with fields to read: a Map or an object (a POJO). What an unmarshal gives.

collection

Many objects: a List, a Set or an array, or an iterator or a stream over them (which can be read once). What a split walks.

A step reached with types of one kind, such as String and byte[], is a part of the route that is dynamic, which the steps after it usually handle. A step reached with bodies of more than one kind needs attention: a step that writes or sends fails for the data, and a step that reads fields fails for the payload. A test that sends the messages of the expected workload shows what each step will see in production.

The route-structure dev console shows the types of each step. For example, a route where only one branch of a Content-Based Router converts the body:

Java-only: a branch that converts the body
from("direct:orders").routeId("orders")
    .choice()
        .when(header("priority").isEqualTo("high"))
            .convertBodyTo(byte[].class)
        .otherwise()
            .log("normal order")
    .end()
    .to("log:outbox");

After a high priority order and a normal one:

       route[orders]
         from[direct:orders]
           choice                               body: String
             when[{header(priority) == high}]
               convertBodyTo[byte[]]            body: String
             otherwise
               log[normal order]                body: String
           to[log:outbox]                       body: byte[] | String

The step after the choice has been reached with a byte[] by the high priority orders, and with a String by the others. Both are a payload, so the step is dynamic but needs no attention. Had the branch unmarshalled the body instead, the line would say body: LinkedHashMap | String (data and payload).

When a step fails on the body, such as reading a field of text, its error says so too: …​; other messages reached this step with data (LinkedHashMap), so the body here depends on the path a message takes. The step is right for some messages, and a path to it, such as a branch that does not unmarshal, is what differs.

The body types of a route are forgotten when the route is removed, such as when it is reloaded in dev mode. In Java the registry is a context plugin:

Java-only: the body types of a step
BodyTypeRegistry registry = context.getCamelContextExtension().getContextPlugin(BodyTypeRegistry.class);
List<String> types = registry.getBodyTypes("orders", "to1");
List<BodyTypeRegistry.Kind> kinds = registry.getBodyKinds("orders", "to1");

The Camel CLI shows them as well, see Camel CLI diagnostics. And its YAML validator uses them where it cannot tell the body from the file itself, such as after an HTTP consumer, see Camel CLI validation.

Dumping the body types

Run the messages of the expected workload, such as in a test, and then read what each step has been reached with:

  • The body-type dev console lists the steps that a message has reached, per route, with their types and kinds. varied=true keeps only the steps reached with more than one type, and filter selects the routes.

  • Over JMX, each processor has the BodyTypes and BodyKinds attributes, and each route counts its steps reached with more than one type (VariedBodyTypes) and with bodies of more than one kind (MixedBodyKinds).

  • The route coverage dump (dumpRoutesCoverageAsXml, which the Camel test kits write when route coverage is enabled) has bodyTypes and bodyKinds attributes on each step a message has reached.

Configuring MessageHistory format

The Message History format in Camel is controlled by Java String.format patterns stored as global options on the CamelContext.

The defaults are defined in MessageHelper.java:

Java-only: default message history format patterns
private static final String MESSAGE_HISTORY_HEADER = "%-40s %-30s %-50s %-12s";
private static final String MESSAGE_HISTORY_OUTPUT = "%-40.40s %-30.30s %-50.50s %12.12s";

You can customize it using application.properties:

camel.main.global-options[CamelMessageHistoryHeaderFormat] = %-40s %-30s %-120s %-12s
camel.main.global-options[CamelMessageHistoryOutputFormat] = %-40.40s %-30.30s %-290.290s %12.12s

If you want to configure the message format for a specific exchange, you can do it programmatically:

Java-only: configuring custom message history format on the CamelContext
camelContext.getGlobalOptions().put(Exchange.MESSAGE_HISTORY_HEADER_FORMAT,
  "%-40s %-30s %-120s %-12s");

camelContext.getGlobalOptions().put(Exchange.MESSAGE_HISTORY_OUTPUT_FORMAT,
  "%-40.40s %-30.30s %-120.120s %12.12s");
